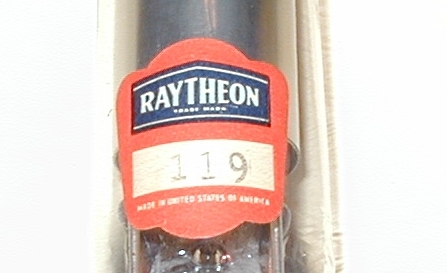

Raytheon RM-201 Thyratron From the Don Davis collection. |
This page was last updated on: February 16, 2004
">
">
">
">

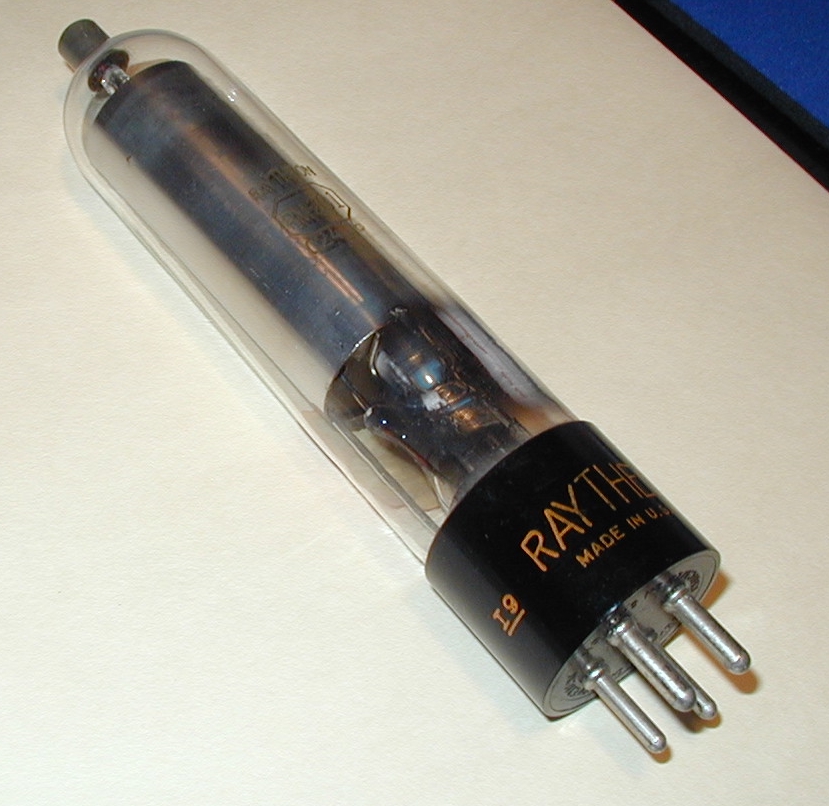

The RM-201 is a "Permatron" controlled rectifier, of triode configuration with argon fill. The output voltage can be controlled either by a magnet attached to the bulb about 1/3 of the way up from the base, or by an internal "collector" electrode acting as a grid. Filament uses 2.5 V @ 3.5 A. Peak reverse voltage is 350; output current is 100 mA. There was a larger Permatron, the RM-208, which is basically an 866A mercury rectifier with collector added, and carrying 866A ratings. An article in "Electronics," April 1939, covers these tubes. |
">
">
">
">
